Introduction:
Our Vertical Five-Axis Machining Center is a highly advanced and sophisticated machine that has been designed and manufactured in China to meet the standards of international quality and precision. This machine is equipped with the latest technologies and features, making it the perfect tool for high-precision manufacturing and machining applications. With its exceptional performance, efficiency, and accuracy, it is the preferred choice of many manufacturers worldwide.
Features and Benefits:
The Vertical Five-Axis Machining Center is one of the most advanced machines in our line of products. It is designed to provide exceptional speed, precision, and control over the entire manufacturing process. Some of the key features and benefits of this machine include:
1. Five-Axis Capability: One of the most important features of this machine is its ability to move in five different directions, making it possible to access and machine even the most complex parts and components with ease and precision.
2. High-Speed Spindle: The machine's high-speed spindle can reach speeds of up to 20,000 RPM, allowing for high-speed milling of even the hardest materials.
3. Precision and Accuracy: The machine comes with a high-precision ball screw and linear guide rail, ensuring that the machine is always in perfect alignment, resulting in accurate and consistent machining.
4. Large Working Area: With its large working area of 800mm x 500mm x 500mm, this machine can handle larger parts and components with ease, making it ideal for various applications.
5. User-Friendly Interface: The machine's user-friendly interface makes it easy to set up and operate, reducing machine downtime and increasing productivity.
Applications:
The Vertical Five-Axis Machining Center has a wide range of applications, making it an excellent choice for various manufacturing industries. Some of the common applications of this machine include:
1. Aerospace Industry: The machine is ideal for manufacturing complex components and parts used in the aerospace industry, such as turbine blades, engine components, and structural parts.
2. Automotive Industry: The machine is perfect for making complex molds, engine components, and other parts used in the automotive industry.
3. Medical Industry: The machine is suitable for manufacturing complex medical devices and equipment such as dental implants, prosthetics, and surgical instruments.
4. Mold Making: The machine's high precision and accuracy make it the ideal choice for manufacturing molds and dies used in various industries.
Conclusion:
In conclusion, the Vertical Five-Axis Machining Center is a powerful and reliable machine that offers exceptional performance, speed, and accuracy. With its five-axis capability, high-speed spindle, large working area, and user-friendly interface, this machine is the complete package for any manufacturing application. Whether you are involved in aerospace, automotive, or medical industry, the Vertical Five-Axis Machining Center is the perfect tool for your manufacturing needs. As a manufacturer in China, we can assure you that our machines are of high quality and are available at competitive prices. Please contact us to learn more about our products and services.
Parameter

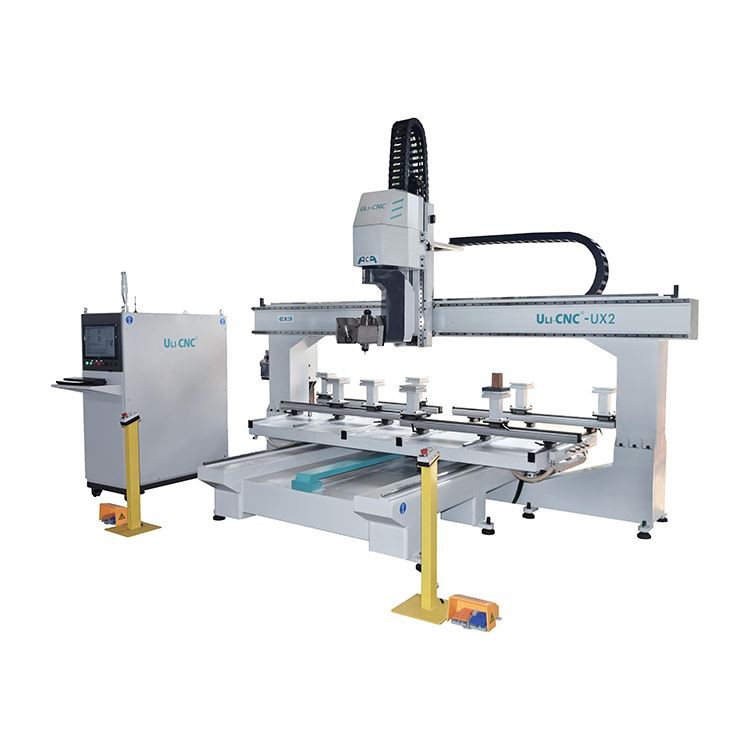

| Product name | Vertical Five-Axis Machining Center |
Model | UX2 |
X/Y/Z axis | 1200 *2500 *500mm（Double table structure） |
Table | Aluminum alloy table |
Spindle | The spindle is a cross head structure, 4 independent 7.5KW spindles |
Movement | All shafts are precision helical gears, screw rods and guide rails |
Vacuum pump | Dry 4.5KW vacuum pump |
Control system | RTCP five-axis control system |
Drive | Japan Yaskawa Servo System |
Description
Uli Vertical five-axis machining center have obvious advantages in complex surface processing, negative angle processing, high-precision processing and high-speed processing. In addition, the worktable has a large swing angle and good dynamic performance, which is suitable for complex curved surface processing (including negative angle processing). The geometric accuracy and high position accuracy of the machine tool are suitable for high-precision parts processing, especially for parts with high hole position accuracy (parallelism, repeatability). The machine has stable performance and long-term accuracy.
Characteristic
Adopting the latest Vertical five-axis machining center overall structure design scheme, high rigidity herringbone structure design column, the machine tool strengthening and rigidity are more than 50% higher than the traditional structure, which improves the cutting feed rigidity and stability, improves the processing accuracy and increases the tool life.
Using high-quality gray iron cast iron, the wear-resistant sheet is precision scratched after aging treatment, which effectively improves the movement characteristics of the machine tool and the necessary contact rigidity for cutting.
Vertical five-axis machining center adopt C3 precision ball screw, with double support of special screw bearing, do pre-tension processing, after laser detection compensation, to ensure that the rigidity and accuracy of the transmission system are improved by more than 30% compared with traditional machine tools.
Display
Application
About us
ULI is a professional manufacturer of CNC engraving and cutting equipment for R&D,production and sales. Since its establishment in 1999, Shanghai ULI has achieved success insoftware CAD, CAM and CNC control system, precision mechanical design and fine compoundengraving and cutting system engineering, realizing scientific and technological productivity! the company's products have 22 product series, mainly CNC robots, 5 Axis Processing Center, 4 Axis Processing Center, PTP Processing Center, Heavy Processing Center, 3Axis CNC Router; Automatic material Handing Processing Center, Pressure Roller ProcessingCenter: Basic CNC Router,Intelligent Cutting Machine, High-speed CNC Engraving Machine, Largerocessing Center, Basso-relievo CNC Router,Deep Engraving Machine, Heavy engravingmachine, Economic Engraving Machine, Stereo Engraving Machine ,3D Scanner ect.
